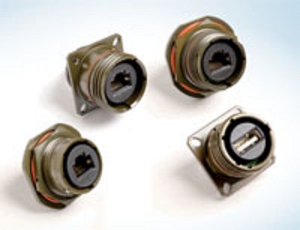

RJ45 Connectors

RJ45 ConnectorsRJ45

Milspares are able to offer high speed RJ45 & USB connector systems. incorporating a (MIL-DTL-38999 series III) or (MIL-DTL-26482) derived metal shell with full 360 degree EMC and mechanical protection. and has been designed to meet the requirements of high speed data connections where reliability through environmental sealing and enhanced mechanical protection are required.

SPECIFICATIONS

Standard materials and finishes

  • Shells: Aluminium, Aluminium bronze, Stainless Steel
  • Insulators: Rigid Plastic
  • Contacts: Copper Alloy
  • Standard Plating finishes
  • Aluminium parts: Cadmium Olive drab, Electroless Nickel, Zinc Cobalt (Black and Olive drab)
  • Contacts: Gold over nickel

Data Performance

  • Cat 5e per ISO/IEC 11801
  • Cat 6 1Gb with enhanced grounding option
  • Cat 6a 10Gb with enhanced grounding option
  • USB High Speed (2.0) 480Mbit/sec

Environmental Features

  • Fully sealed to IP68 for fluid (1m for 2 hours) and dust laden environments
  • High levels of shock, vibration and mechanical impact protection
  • Fully enclosed connector shells for superior mechanical strength
  • Service temperature: -40°C to +120°C

Mechanical Features

  • Coupling: 3 start thread (ABAC) or Bayonet Lock (AB05)
  • Polarisation: key-keyway and insert
  • Sealing: Dynamic Sealing Ring.
  • Endurance: 500 Mating cycles
  • Positive cordset retention: >200N axial force
