Micro Connectors

Micro ConnectorsMicro Connectors

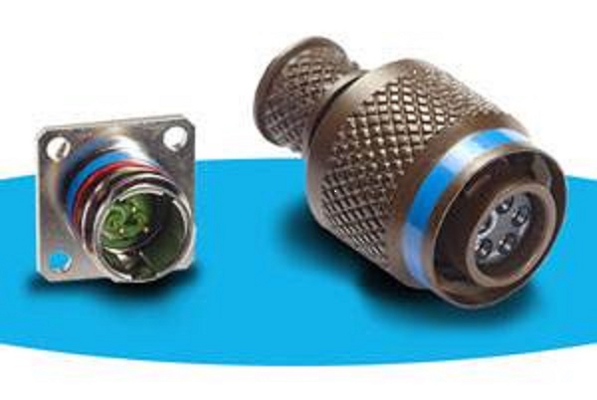

Complete range of miniature Threaded, Push Pull and Bayonet connectors.

Milspares can supply the complete range of miniature products with a MIL-DTL-38999 design in order to be compliant with the harshest specification (Vibration, operating temperature, durability, corrosion resistance and EMI shielding)

Threaded (T) Series

  • A compact solution
  • The smallest connector available on the market (shell size 3)
  • Miniaturization of MIL-DTL-38999 Series III
  • Threaded coupling (between 1/2 and 3/4 turn to mate) with ratcheting system (size 5 & 7)
  • Integrated backshell:
  • Easy to wire and handle
  • Compatible with heat shrink boot and braid retention band
  • Compliant with overmolding
  • Triple-start thread
  • A versatile solution
  • 3 shells sizes: 3, 5, 7
  • Plug; In line, box and jam nut receptacle
  • 2 materials, 3 platings
  • Crimp & PC tails
  • Removable contacts #22D & #26
  • 6 keyings
  • Harsh environment-resistant solution
  • Scoop Proof
  • Cavity to cavity sealed with interfacial seal and grommet
  • EMI ring (for size 5 & 7)
  • Fluid resistant

Push Pull (P) Series

  • A compact solution
  • The smallest connector available on the market (shell size 3)
  • Break away: quick disconnect
  • Integrated backshell:
  • Easy to wire and handle
  • Compatible with heat shrink boot and braid retention band
  • Compliant with overmolding
  • A versatile solution
  • 3 shells sizes: 3, 5, 7
  • Plug; In line and jam nut receptacle
  • 2 materials, 3 platings
  • Crimp & PC tails (on request)
  • Removable contacts #22D & #26
  • 6 keyings
  • Harsh environment-resistant solution
  • Scoop Proof (when sockets mounted into receptacle only)
  • Cavity to cavity sealed with interfacial seal and grommet
  • Fluid resistant

Bayonet (B) Series

  • A compact solution
  • The smallest connector available on the market (shell size 3)
  • Miniaturization of MIL-DTL-38999 Series I
  • Quick bayonet locking
  • Integrated backshell:
  • Easy to wire and handle
  • Compatible with heat shrink boot and braid retention band
  • Compliant with overmolding
  • A versatile solution
  • 3 shells sizes: 3, 5, 7
  • Plug; In line, box, oval flange and jam nut receptacle
  • 2 materials, 3 platings
  • Crimp & PC tails
  • Removable contacts #22D & #26
  • 6 keyings
  • Harsh environment-resistant solution- Scoop Proof
  • Cavity to cavity sealed with interfacial seal and grommet
  • Fluid resistant
